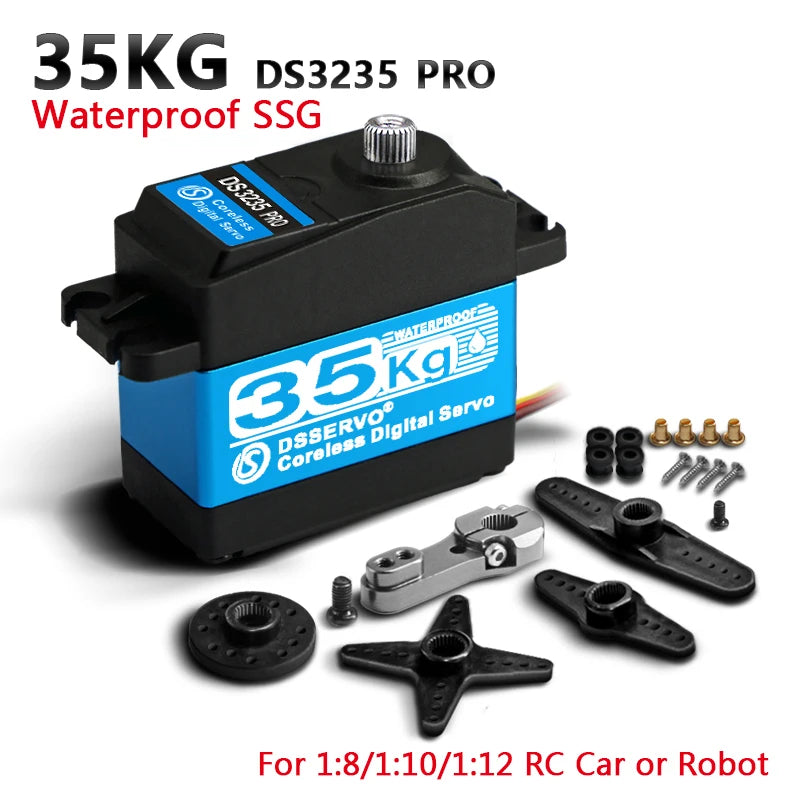

1X Coreless servo 25kg 35KG high speed servo pro digital and Stainless Steel gear servo arduino servo for Robotic DIY,RC car

Name: 1X Coreless servo 25kg 35KG high speed servo pro digital and Stainless Steel gear servo arduino servo for Robotic DIY,RC car
Brand: Hot Wheelman & Collectibles
SKU: 14:200006151#DS3235-180
Price: 154.95 USD
Availability: InStock

$154.95

$154.95 ~~$0.00~~

Tax included.

Quantity

Compare

Ask a question

Size guide

SPECIFICATIONS

Brand Name: Dsservo

Is Electric: No battery

Origin: Mainland China

Material: Metal

Recommend Age: 14+y

RC Parts & Accs: Servos

For Vehicle Type: Cars

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: tires

Remote Control Peripherals/Devices: Remote Controller

Tool Supplies: Cutting

Technical parameters: KV1100

Model Number: DS3235 SSG waterproof

Four-wheel Drive Attributes: Assemblage

Choice: yes

semi_Choice: yes

Sepcification:

Brand:Dsservo

Packing List:

1x digital servo

1x 25T adjustable metal servo arm

1x accessory bag

Apply Environmental Conditon:

1.Storage Temperature Range:-30°C~80°C

2.Operating Temperature Range:-25°C~70°C

Mechanical Specification:

1. Size: 40.0*20.5*40.5mm

2. Weight: 58g±2g

3. Limit angle: 360°

4.Bearing: 2BB

5.Horn gear spline: 25T Diameter:5.9mm

6.Case : Engineering plastics+Aluminum alloy

7.Connector wire: 320mm±5mm

8.Motor: Coreless brush motor

Electrical Specification:

1.Working voltage range: 5 - 8.4V

2.Command signal: Pulse width modification

3.Amplifier type: Digital controller

4.Pulse width range: 500～2500usec

5.Neutral position: 1500usec

6.Running degree: 180±3°(PWM 500～2500usec) or 270±3°(PWM500～2500usec)

7.Dead band width: 3 usec

8.Rotating direction Counterclockwise: (when 1000～2000usec)

If you need to buy more servos, please looking for 4X links in the store for discounts!
